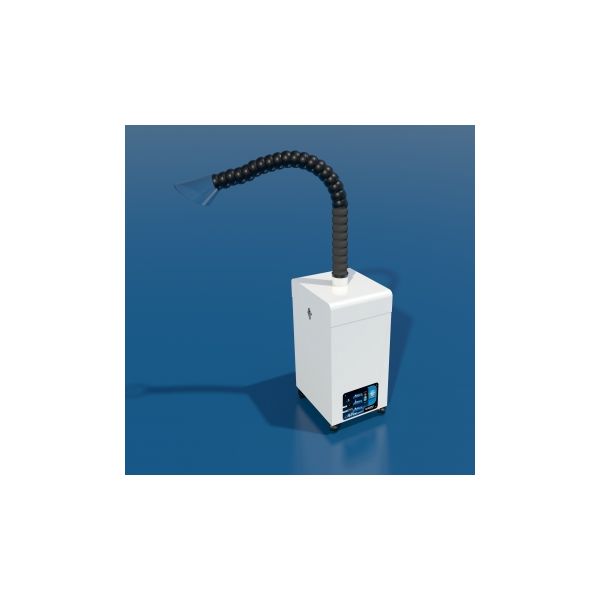

Quatro MedEVACa Extraoral Suction
Capture aerosols directly at the source.
2 Stage Filtration System
High Capacity pre-filter (MERV 8)
6" Certified HEPA Filter (99.995% efficient)
150 CFM
Mobile Adjustable Arm
Includes Foot Control
Intelligent Controls
Quiet Operation
BLOW OUT SALE- 4 Units Left at Sale Price!!!
Applications: extraoral suction, dental suction, oral source aerosol vacuum, chair-side aerosol suction.
Operating dimensions (WxDxH): 12.5x15.5x26.5” / 318x394x673 mm
Operating weight: 60 lbs / 27 kg
Shipping dimensions: UPS: 18x20x29” / 457x508x737 mm
Shipping weight: 60 lbs / 29 kg
Blower free air: 17556 l/min (620 CFM)
Nominal operating air flow: 4247 l/min (150 CFM)
Maximum blower pressure: 746 Pa ( 3” w.c.)
Electrical requirements: 120V, single phase
Power cord: Medical approved, type SJT
Current draw: 2A (at 120V)
Power consumption: 200W
Digital variable speed control: Yes
Audible alarms: Yes
Visual alarms: Yes
Remote operation ready: Yes, foot-switch included (#AA175)
Source capture arm: ESD Eafe Flex and Stay, 36” long
Source capture nozzle: Transparent plexi, 8” diameter
Filtration system: 2-stage
Pre-filter: 2” deep, pleated MERV8 (#F071/BX, box of 6)
HEPA filter: 6” deep, individually certified and tested HEPA filter 99.995%* (#F475)
Quality control: electrical, air flow, mechanical and leak (POA aerosol generator and photometer) testing
* Limits exposure to operator as everything is sealed inside the bag filter with the peel off adhesive backing cover to seal filter for disposal
** All HEPA filters are individually tested and certified to North American standard IEST-RP-CC001: HEPA, European Equivalent EN1822
